Specification
Details
Model Year
2024
Type
Drydock Submersible High Lift Trailer
Axles
4 Axles
Capacity
60 Tons
Operation
Hydraulic Highway Trailer
Boat Compatibility
Fishing boats/power boats up to 60 ft; non-cradled sailboats up to 70 ft
Dimensions (L x W)
60 ft x 10 ft 6 in
Wheels & Tires
16 aluminum wheels with 255/70/22.5 tires
Main Beams
½ in thick sealed steel beams
Hydraulic System
6 adjustable hydraulic arms; rear arms swivel and pin in 3 positions

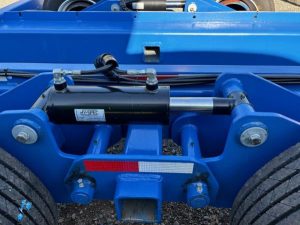

Lift Cylinders
4-wheel lift hydraulic cylinders with 24 in frame/wheel height travel
Engine
20 HP Honda V-twin motor
Braking System
Air brakes
Paint Finish
Enamel paint
Lighting
10 LED strobe lights
Additional Features
6 flag holders, 8 D-rings
Winch
25 Ton hydraulic winch
Construction Details
Aluminum treads, handrails, fuel tank, hydraulic tank, and control box
Keel Bars
Aluminum with 8 keel bar pocket positions
Location
UK
