Additional Information
Undercarriage
- 2 x 22,500 lb. Heavy Wall Oil Bath Axles
- 12 1/4” x 7 1/2” All Wheel Air Brakes
- Hutch 9700 Suspension, 49” Axle Spread
- 2S/1M ABS, T3030 Air Chambers
- 215/75 R17.5 16 Ply Tires, 17.5” Rims
Dimensions
- 49,000 GVWR
- 20’ Flat Deck + 5’ Wood-Lined Beavertail

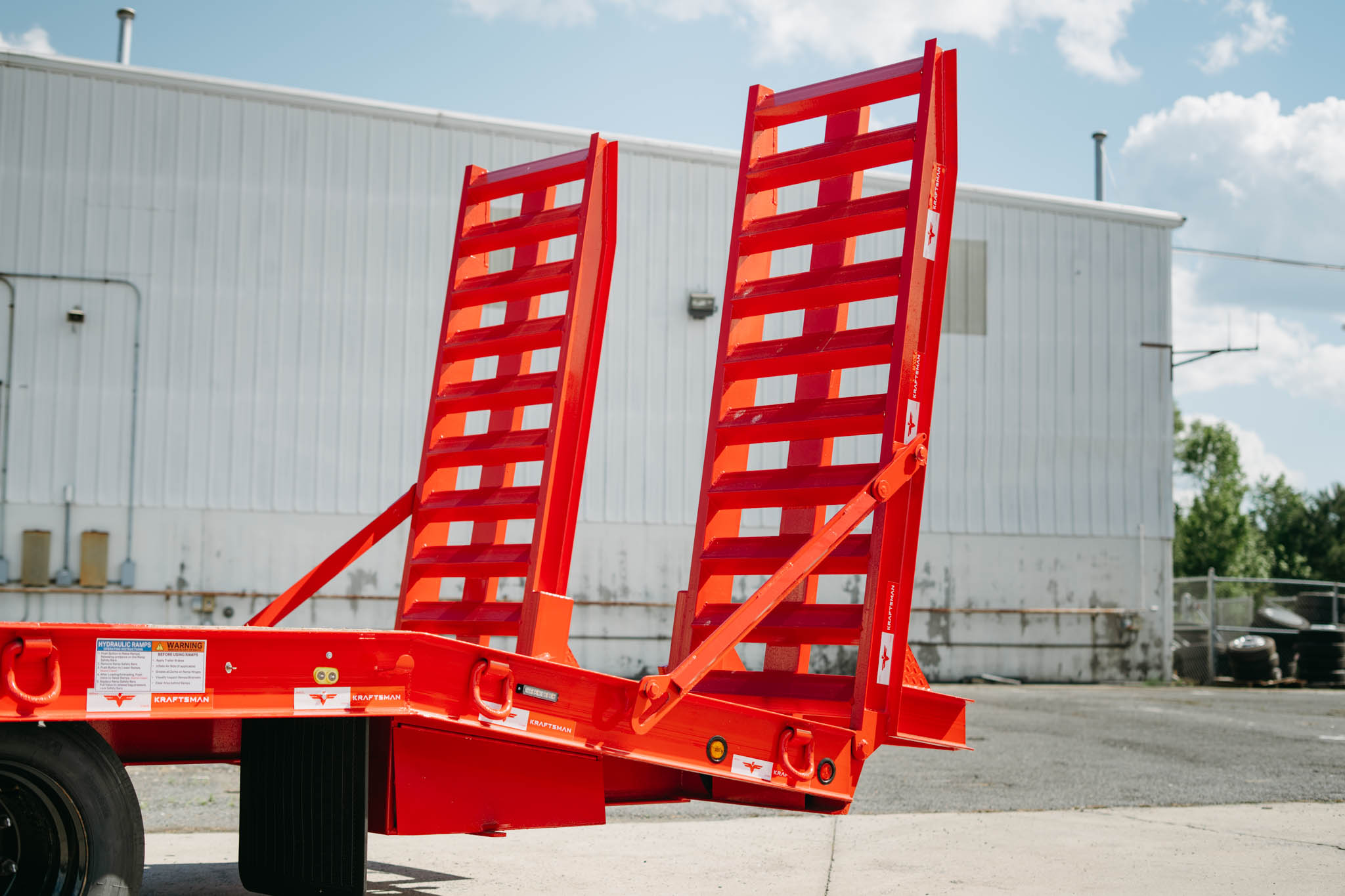

- 5’ Tall x 20” Wide Spring, Fold-Over Ramps
- 35” Unloaded Deck Height
- 6’ Hydraulic Cold-Formed Tongue
2” Nominal Oak Decking
Single 25K 2-Speed Jack
60,000 lb. Bolt-On, Adjustable Pintle
Heavy Duty D-Rings on 36” Centers
HD Anti-Sail Mudflaps
